Angular 21 + .NET 10 Integration: OpenAPI Codegen, JWT Auth, and Error Handling

The Angular app and the .NET API are two separate processes. The only thing connecting them is an HTTP contract. Get that contract wrong — or let it drift — and you get runtime errors that don’t show up until a customer triggers that specific code path.

This is Part 4 of the Angular Ecommerce Playbook. We’re wiring TechShop’s Angular 21 frontend to its .NET 10 Minimal API backend with type safety enforced at every layer: OpenAPI codegen, JWT auth interceptors, Problem Details error handling, and SignalR for real-time inventory.

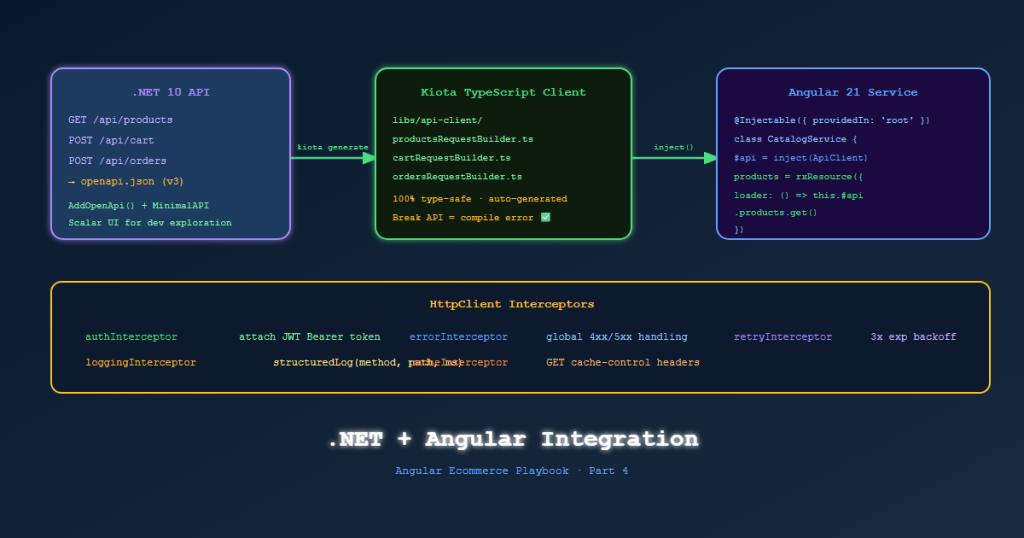

📊 Download: Angular ↔ .NET Integration Diagram (draw.io)

Step 1: .NET 10 Built-in OpenAPI

.NET 10 includes built-in OpenAPI document generation — no Swashbuckle required. In Program.cs:

// Program.cs — .NET 10
var builder = WebApplication.CreateBuilder(args);

builder.Services
    .AddApplication()
    .AddInfrastructure(builder.Configuration);

// Built-in OpenAPI — no Swashbuckle
builder.Services.AddOpenApi(options =>
{
    options.AddDocumentTransformer<BearerSecuritySchemeTransformer>();
});

var app = builder.Build();

if (app.Environment.IsDevelopment())
{
    app.MapOpenApi(); // Serves at /openapi/v1.json
}

app.MapProductEndpoints();
app.MapCartEndpoints();
app.MapOrderEndpoints();

app.Run();

In .NET 10, MapOpenApi() generates a full OpenAPI 3.1 document at /openapi/v1.json — no additional package needed. This is the document Kiota consumes.

Step 2: Kiota TypeScript Client Generation

Kiota is Microsoft’s first-party OpenAPI client generator. Unlike swagger-typescript-api or openapi-generator, Kiota generates a navigation-style client that mirrors the API’s URL structure:

# Install Kiota globally
pnpm add -g @microsoft/kiota

# Generate from the running .NET 10 API
kiota generate \
  --openapi http://localhost:5000/openapi/v1.json \
  --language typescript \
  --class-name TechShopApiClient \
  --namespace-name TechShop.Api \
  --output libs/shared/api-client/src/lib/generated \
  --clean-output \
  --exclude-backward-compatible

# Install Kiota runtime packages
pnpm add @microsoft/kiota-abstractions @microsoft/kiota-http-fetchlibrary \
  @microsoft/kiota-serialization-json

The generated client is a tree of request builders mirroring the API routes:

// Generated — do not edit manually
// libs/shared/api-client/src/lib/generated/techShopApiClient.ts
export class TechShopApiClient {
  get products(): ProductsRequestBuilder { ... }
  get cart(): CartRequestBuilder { ... }
  get orders(): OrdersRequestBuilder { ... }
  get auth(): AuthRequestBuilder { ... }
}

// Usage — type-safe navigation
const client = inject(TechShopApiClient);
const product = await client.products.bySlug('macbook-pro-16').get();
// product is typed as Product | undefined — from your .NET model

Automating Codegen in CI

The key discipline: run codegen in CI and fail if the generated files have changed without being committed.

# .github/workflows/api-codegen-check.yml
name: Check API Client is Up To Date
on: [pull_request]

jobs:
  check-codegen:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - name: Start .NET API
        run: dotnet run --project src/TechShop.Api &
        working-directory: ../techshop-api
      - name: Wait for API
        run: npx wait-on http://localhost:5000/openapi/v1.json
      - name: Regenerate client
        run: kiota generate --openapi http://localhost:5000/openapi/v1.json ...
      - name: Check for drift
        run: |
          git diff --exit-code libs/shared/api-client/src/lib/generated
          # If there's a diff, the API changed and codegen wasn't re-run

If a backend developer adds a field to a .NET model without running codegen, the TypeScript types will still be the old version. The CI check catches this before it merges.

Step 3: JWT Authentication

.NET 10 — Token Endpoint with Minimal API

// TechShop.Api/Endpoints/AuthEndpoints.cs
namespace TechShop.Api.Endpoints;

public static class AuthEndpoints
{
    public static void MapAuthEndpoints(this IEndpointRouteBuilder routes)
    {
        var group = routes.MapGroup("/api/auth").WithTags("Auth");

        group.MapPost("/token", async (
            LoginCommand command,
            ISender sender,
            CancellationToken ct) =>
        {
            var result = await sender.Send(command, ct);
            return Results.Ok(result);  // Returns TokenResponse
        });

        group.MapPost("/refresh", async (
            RefreshTokenCommand command,
            ISender sender,
            CancellationToken ct) =>
        {
            var result = await sender.Send(command, ct);
            return Results.Ok(result);
        });
    }
}

The TokenResponse .NET 10 record:

public sealed record TokenResponse(
    string AccessToken,
    string RefreshToken,
    DateTimeOffset ExpiresAt
);

Angular 21 — Auth Service with Signals

// libs/shared/auth/src/lib/auth.service.ts
import { Injectable, inject, signal, computed } from '@angular/core';
import { Router } from '@angular/router';
import { TechShopApiClient } from '@techshop/shared/api-client';

@Injectable({ providedIn: 'root' })
export class AuthService {
  private readonly api = inject(TechShopApiClient);
  private readonly router = inject(Router);

  // Auth state as signals — components react automatically
  private readonly _accessToken = signal<string | null>(
    localStorage.getItem('accessToken')
  );
  private readonly _refreshToken = signal<string | null>(
    localStorage.getItem('refreshToken')
  );
  private readonly _expiresAt = signal<Date | null>(
    this.parseStoredDate('expiresAt')
  );

  // Public computed signals — components read these
  readonly isAuthenticated = computed(() => {
    const token = this._accessToken();
    const expiry = this._expiresAt();
    return !!token && !!expiry && expiry > new Date();
  });

  readonly accessToken = this._accessToken.asReadonly();

  async login(email: string, password: string): Promise<void> {
    const response = await this.api.auth.token.post({
      email, password
    });

    if (response) {
      this.setTokens(response);
    }
  }

  async refreshTokens(): Promise<boolean> {
    const refresh = this._refreshToken();
    if (!refresh) return false;

    try {
      const response = await this.api.auth.refresh.post({ refreshToken: refresh });
      if (response) {
        this.setTokens(response);
        return true;
      }
    } catch {
      this.logout();
    }
    return false;
  }

  logout(): void {
    this._accessToken.set(null);
    this._refreshToken.set(null);
    this._expiresAt.set(null);
    localStorage.clear();
    this.router.navigate(['/login']);
  }

  private setTokens(response: TokenResponse): void {
    this._accessToken.set(response.accessToken);
    this._refreshToken.set(response.refreshToken);
    this._expiresAt.set(new Date(response.expiresAt));
    localStorage.setItem('accessToken', response.accessToken);
    localStorage.setItem('refreshToken', response.refreshToken);
    localStorage.setItem('expiresAt', response.expiresAt.toString());
  }

  private parseStoredDate(key: string): Date | null {
    const val = localStorage.getItem(key);
    return val ? new Date(val) : null;
  }
}

Angular 21 — HTTP Interceptors (Functional)

Angular 21 uses functional interceptors registered in provideHttpClient(withInterceptors([...])).

// libs/shared/auth/src/lib/auth.interceptor.ts
import { HttpInterceptorFn, HttpErrorResponse } from '@angular/common/http';
import { inject } from '@angular/core';
import { catchError, switchMap, throwError } from 'rxjs';
import { from } from 'rxjs';
import { AuthService } from './auth.service';

export const authInterceptor: HttpInterceptorFn = (req, next) => {
  const auth = inject(AuthService);
  const token = auth.accessToken();

  // Attach Bearer token to all API requests
  const authReq = token
    ? req.clone({ setHeaders: { Authorization: `Bearer ${token}` } })
    : req;

  return next(authReq).pipe(
    catchError((error: HttpErrorResponse) => {
      if (error.status === 401) {
        // Token expired — try to refresh
        return from(auth.refreshTokens()).pipe(
          switchMap(refreshed => {
            if (refreshed) {
              // Retry the original request with new token
              const newToken = auth.accessToken();
              const retryReq = req.clone({
                setHeaders: { Authorization: `Bearer ${newToken}` }
              });
              return next(retryReq);
            }
            // Refresh failed — let the error propagate (AuthService handles logout)
            return throwError(() => error);
          })
        );
      }
      return throwError(() => error);
    })
  );
};

Note on Kiota + interceptors: The Kiota FetchRequestAdapter uses the Fetch API, not Angular’s HttpClient. This means Angular interceptors don’t automatically apply to Kiota requests. The solution is to use Angular’s HttpClient-based Kiota adapter or write a middleware for the Kiota adapter. Part 8 (Copilot) shows how Copilot can generate this boilerplate quickly.

Step 4: Problem Details Error Handling

.NET 10 uses Problem Details (RFC 9457) for all error responses. A 422 validation error looks like:

{
  "type": "https://tools.ietf.org/html/rfc9110#section-15.5.1",
  "title": "Validation Failed",
  "status": 422,
  "errors": {
    "email": ["Email is required"],
    "password": ["Password must be at least 8 characters"]
  }
}

Angular error interceptor that parses Problem Details:

// libs/shared/auth/src/lib/error.interceptor.ts
import { HttpInterceptorFn, HttpErrorResponse } from '@angular/common/http';
import { inject } from '@angular/core';
import { catchError, throwError } from 'rxjs';
import { NotificationService } from '@techshop/shared/ui';

export interface ProblemDetails {
  type: string;
  title: string;
  status: number;
  detail?: string;
  errors?: Record<string, string[]>;
}

export const errorInterceptor: HttpInterceptorFn = (req, next) => {
  const notifications = inject(NotificationService);

  return next(req).pipe(
    catchError((error: HttpErrorResponse) => {
      // Skip auth errors — auth interceptor handles those
      if (error.status === 401) return throwError(() => error);

      const problem = error.error as ProblemDetails;

      if (problem?.title) {
        if (problem.errors) {
          // Validation errors — let the form handle display
          // We re-throw with typed errors for form binding
          return throwError(() => ({
            ...error,
            validationErrors: problem.errors
          }));
        }
        notifications.error(problem.title, problem.detail);
      } else if (error.status === 0) {
        notifications.error('No connection', 'Check your internet connection');
      } else if (error.status >= 500) {
        notifications.error('Server error', 'Something went wrong. Please try again.');
      }

      return throwError(() => error);
    })
  );
};

CORS Configuration (.NET 10)

// Program.cs
builder.Services.AddCors(options =>
{
    options.AddPolicy("Angular", policy =>
    {
        policy
            .WithOrigins("http://localhost:4200", "https://techshop.com")
            .AllowAnyHeader()
            .AllowAnyMethod()
            .AllowCredentials(); // Required for SignalR
    });
});

app.UseCors("Angular");

Step 5: SignalR Real-Time Inventory

Long-lived ecommerce flows need real-time data. A product showing “In Stock” for two minutes while another user completes the same purchase is a bad customer experience. We use .NET 10 SignalR + Angular.

.NET 10 — SignalR Hub

// TechShop.Infrastructure/Realtime/InventoryHub.cs
namespace TechShop.Infrastructure.Realtime;

[Authorize]
public class InventoryHub : Hub
{
    public async Task JoinProductGroup(string productId)
    {
        await Groups.AddToGroupAsync(Context.ConnectionId, $"product-{productId}");
    }
}

// Notification service called from MediatR domain event handler
public class InventoryNotificationService(IHubContext<InventoryHub> hubContext)
{
    public async Task NotifyStockChange(string productId, int newStock)
    {
        await hubContext.Clients
            .Group($"product-{productId}")
            .SendAsync("InventoryUpdated", new { productId, stock: newStock });
    }
}

Angular 21 — SignalR Service

// libs/shared/realtime/src/lib/inventory-realtime.service.ts
import { Injectable, inject, OnDestroy } from '@angular/core';
import { HubConnectionBuilder, HubConnection, LogLevel } from '@microsoft/signalr';
import { Observable, Subject } from 'rxjs';
import { toSignal } from '@angular/core/rxjs-interop';
import { AuthService } from '@techshop/shared/auth';
import { environment } from '@techshop/shared/environment';

export interface InventoryUpdate {
  productId: string;
  stock: number;
}

@Injectable({ providedIn: 'root' })
export class InventoryRealtimeService implements OnDestroy {
  private readonly auth = inject(AuthService);
  private connection: HubConnection;
  private updates$ = new Subject<InventoryUpdate>();

  // Convert the Observable stream to a Signal for component consumption
  readonly latestUpdate = toSignal(this.updates$);

  constructor() {
    this.connection = new HubConnectionBuilder()
      .withUrl(`${environment.apiUrl}/hubs/inventory`, {
        accessTokenFactory: () => this.auth.accessToken() ?? '',
      })
      .withAutomaticReconnect()
      .configureLogging(LogLevel.Warning)
      .build();

    this.connection.on('InventoryUpdated', (update: InventoryUpdate) => {
      this.updates$.next(update);
    });

    this.connection.start().catch(err =>
      console.error('SignalR connection failed:', err)
    );
  }

  async joinProductGroup(productId: string): Promise<void> {
    await this.connection.invoke('JoinProductGroup', productId);
  }

  ngOnDestroy(): void {
    this.connection.stop();
  }
}

In the product detail component:

@Component({ /* ... */ })
export class ProductDetailComponent implements OnInit {
  private realtime = inject(InventoryRealtimeService);
  readonly product = input.required<Product>();

  // Real-time stock signal
  private readonly stockUpdate = this.realtime.latestUpdate;

  readonly displayedStock = computed(() => {
    const update = this.stockUpdate();
    if (update?.productId === this.product().id) {
      return update.stock;
    }
    return this.product().stockQty;
  });

  ngOnInit() {
    this.realtime.joinProductGroup(this.product().id);
  }
}

Dev Proxy Configuration

During development, the Angular dev server runs on localhost:4200 while the .NET API runs on localhost:5000. Configure the Angular proxy to avoid CORS issues in development:

// proxy.conf.json
{
  "/api": {
    "target": "http://localhost:5000",
    "secure": false,
    "changeOrigin": true,
    "logLevel": "info"
  },
  "/hubs": {
    "target": "http://localhost:5000",
    "secure": false,
    "ws": true,
    "changeOrigin": true
  }
}

angular.json:

"serve": {
  "options": {
    "proxyConfig": "proxy.conf.json"
  }
}

Now http://localhost:4200/api/products proxies to http://localhost:5000/api/products. No CORS issues. No hardcoded ports in Angular code.

References

This is Part 4 of 11 in the Angular Ecommerce Playbook. ← Part 3: Training .NET Devs | Part 5: Ecommerce Domain →

Export for reading

Angular 21 + .NET 10 Integration: OpenAPI Codegen, JWT Auth, and Error Handling

Step 1: .NET 10 Built-in OpenAPI

Step 2: Kiota TypeScript Client Generation

Automating Codegen in CI

Step 3: JWT Authentication

.NET 10 — Token Endpoint with Minimal API

Angular 21 — Auth Service with Signals

Angular 21 — HTTP Interceptors (Functional)

Step 4: Problem Details Error Handling

CORS Configuration (.NET 10)

Step 5: SignalR Real-Time Inventory

.NET 10 — SignalR Hub

Angular 21 — SignalR Service

Dev Proxy Configuration

References

Comments

On this page

Angular 21 + .NET 10 Integration: OpenAPI Codegen, JWT Auth, and Error Handling
